Resistivity of Constantan 3D practical for A level Physics

This is a student or teacher controlled 3d simulation of an experiment to measure the resistivity of constantan.

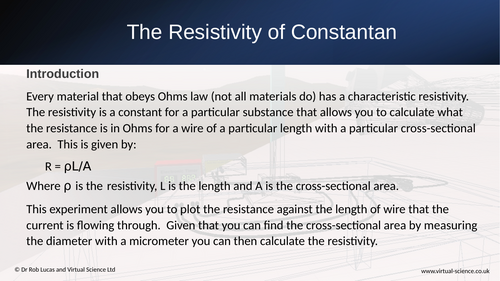

Every material that obeys Ohms law (not all materials do) has a characteristic resistivity. The resistivity is a constant for a particular substance that allows you to calculate what the resistance is in Ohms for a wire of a particular length with a particular cross-sectional area.
This experiment allows you to plot the resistance against the length of wire that the current is flowing through. Given that you can find the cross-sectional area by measuring the diameter with a micrometer you can then calculate the resistivity.

The user has control over the position of the crocodile clip on the constantan wire, the voltage from the power supply unit, and the micrometer screw gauge barrel. The user can position him/herself anywhere within the laboratory.

You can try one of the simulations from our website. Instructions are viewable within the simulation.

The simulation is perfect for demonstrating this experiment in front of the class but can also be used by students in a variety of ways:

Directly to prepare for a laboratory experiment by familiarising them with the equipment to be used and the methodology of the experiment.

As revision for an experiment that has previously been performed in the laboratory.

For home-learning where there is no access to a laboratory.

To make up for an experiment missed due to sickness.

As a personal experience of an experiment normally only performed by the teacher in front of the class.
.
Download contains full instructions on using the package, a PowerPoint giving full instructions including a video , background on the Physics and instructions on running the experiment, as well as a link to an on-line version (no need to install unless you want to).

The Virtual Physics Laboratory of which this simulation is a part, has the Association for Science Education’s Green Tick of Approval. More information can be found on our website.
