Fusion 360 Tutorial:
These simple exercises are great for learning, developing and building confidence in the solid modeling environment. This resource is part of a series of similar exercises.
This resource includes the following:
- Orthographic drawings with dimensions of the object

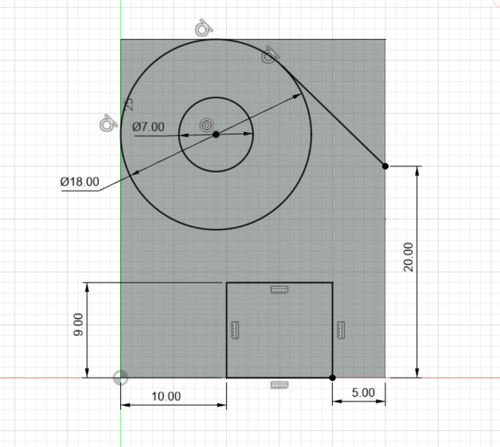

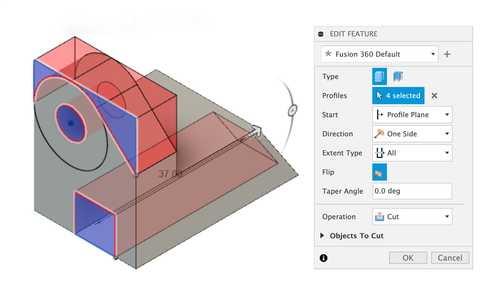

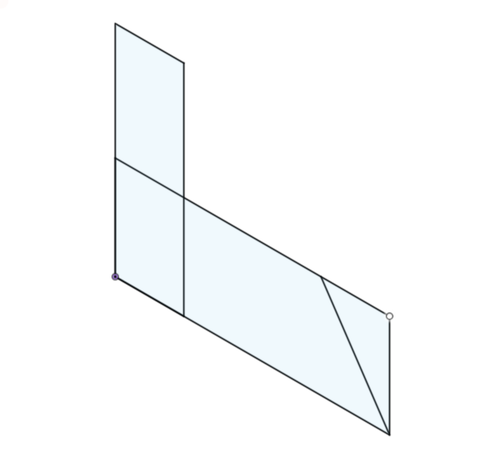

- Previews of key steps of the process like sketches or dialog boxes
- A video tutorial (no sound) which means no headphones are required
- A second video tutorial with an alternative method
This tutorial uses the following key skills:
- Smart dimension
- Dimensioning between two objects
- Extruding
- Choosing an existing face as a sketch plane
- Tangent constraint
- Cut-extrude
- Extruding using ‘through all’ as extent type
Difficulty rating ★★☆☆☆
(for a novice)
Get this resource as part of a bundle and save up to 73%
A bundle is a package of resources grouped together to teach a particular topic, or a series of lessons, in one place.
Something went wrong, please try again later.
This resource hasn't been reviewed yet
To ensure quality for our reviews, only customers who have purchased this resource can review it
Report this resourceto let us know if it violates our terms and conditions.
Our customer service team will review your report and will be in touch.
£1.00
