3 V = IR Series & Parallel Electrical Circuits Worksheets (5 sides of questions) WITH ANSWERS

WITH ANSWERS

Three worksheets requiring students to apply the V = IR equation to series and parallel circuit problems.

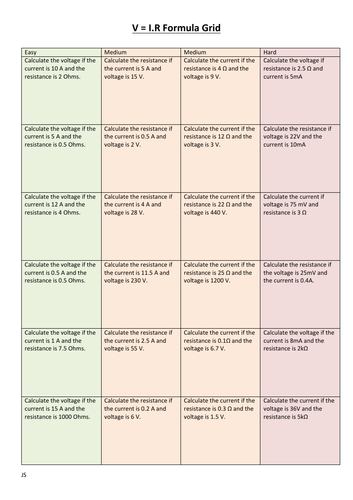

• Worksheet 1 - V = IR Formula Grid; simple problems requiring students to manipulate the equation to find voltage, current or resistance. Extension questions use SI prefixes.

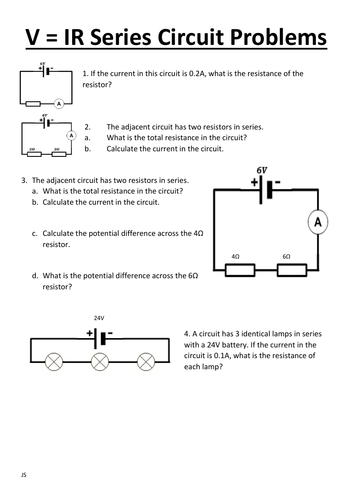

• Worksheet 2 - V = IR Series Circuit Problems; applying V = IR to series circuits. Two sides of questions. An extension task requires students to use simultaneous equations.

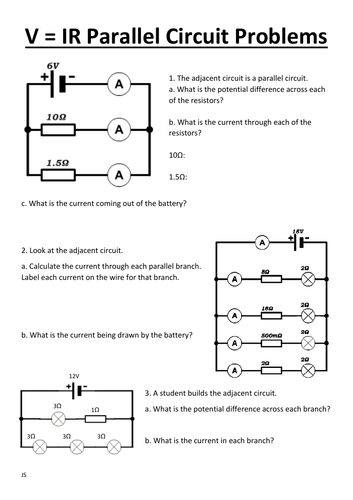

• Worksheet 3 - V = IR Parallel Circuit Problems; applying V = IR to parallel circuits. Two sides of questions. An extension task looks at a complicated circuit, with combinations of resistors in parallel with other resistors in series.

Answers are included for each worksheet.

I use the worksheets for my IGCSE and GCSE Physics classes, and as introductions for my A-level Physics class, in electricity and electrical circuits topics.

Please leave a review if you like my resource.
