This scheme of work covers the following areas

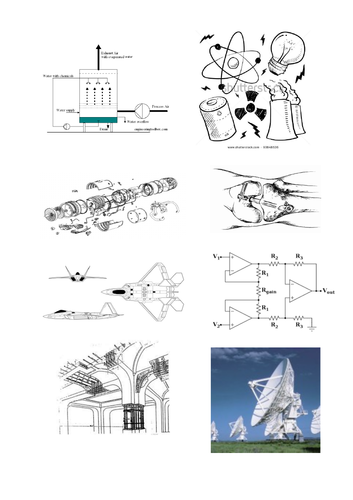

Engineer Sectors
Diodes & LEDs

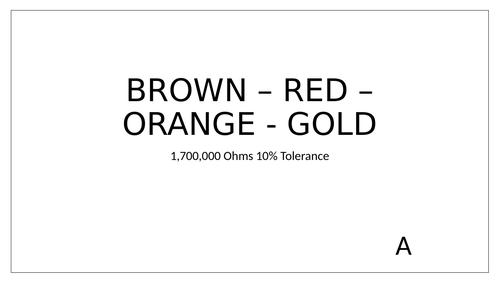

Resistors
Transistors
Capacitors
ICs
PCBs
Introduction to Soldering
Plan of Making
Design Criteria

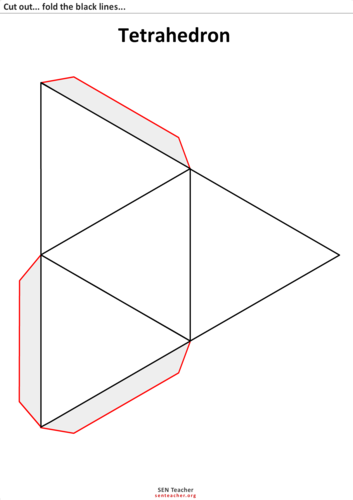

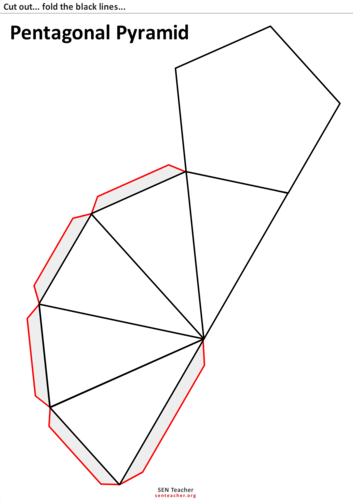

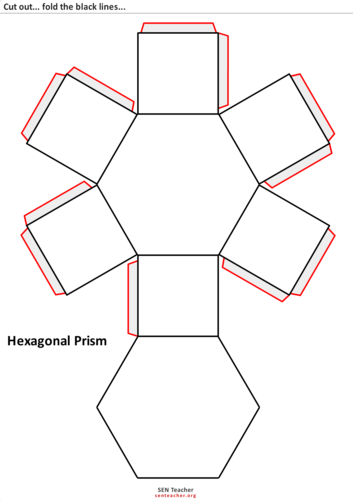

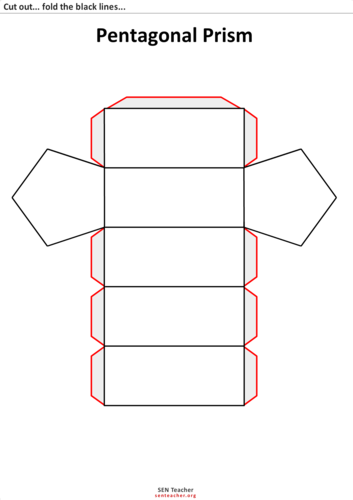

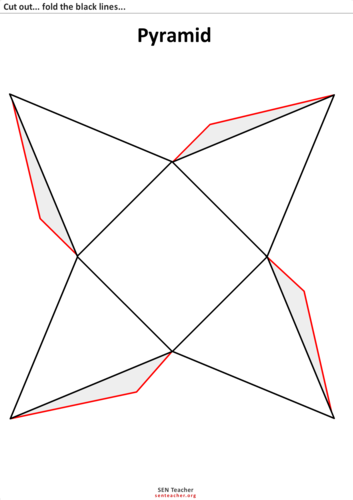

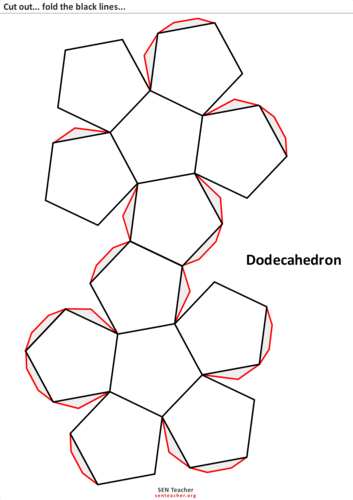

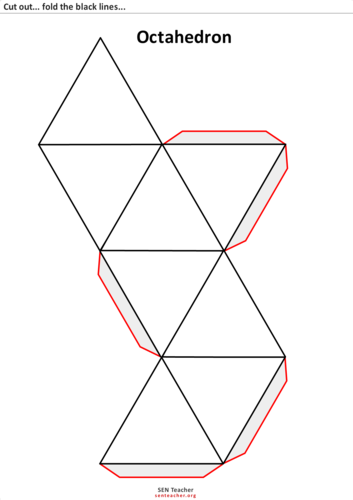

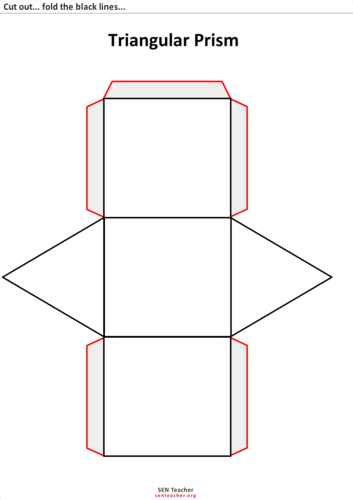

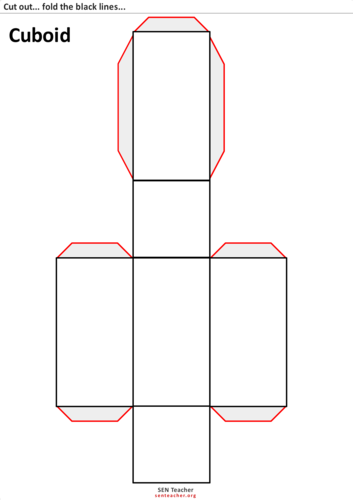

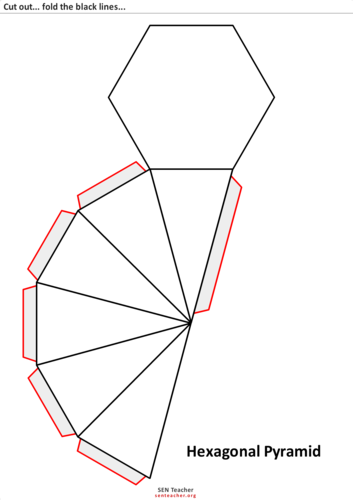

Contructing Nets
Design Ideas
Modelling
Orthographic Drawing
CAD/CAM
Evaluation
Pages have common comments to highlight for assessment with space for personalised comments at the bottom.
There are also 9 homework sheets based off past exam questions

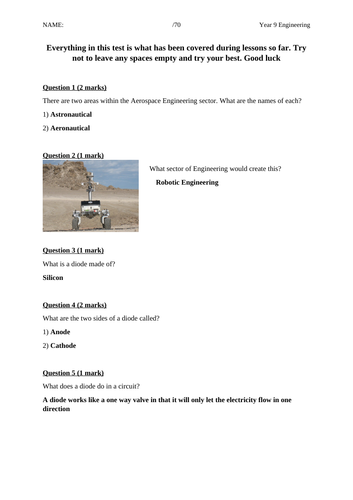

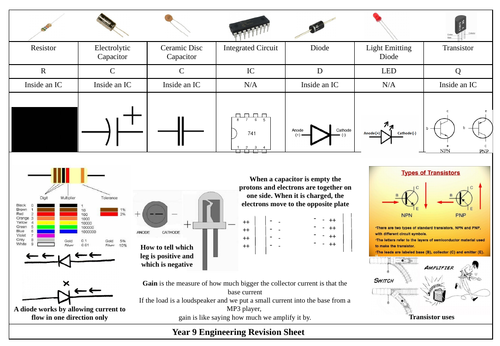

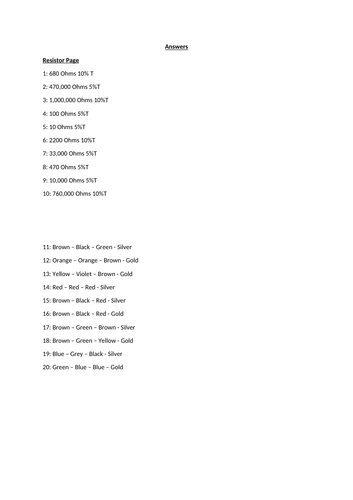

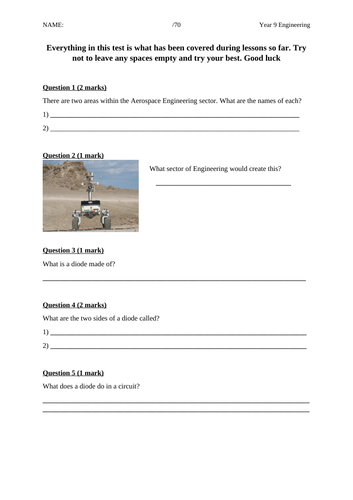

There is a test on electronic components with answers and a revision sheet
There is also a link to a prezi that covers the 40 lessons.
Our school has roughly 40 lessons to complete the scheme of work - but for schools that have less, certain sections can be taken out and/or adapted to squeeze it in.
