IV Characteristics of a filament light - 3D practical for GCSE Physics

This is a teacher or student controlled 3d experiment that allows you to plot the IV characteristics of a lightbulb. That is, you can plot how the current changes when you change the voltage (The ‘I’ is for current, and the V is for voltage). This depends on the resistance of the bulb which changes depending on the voltage. Effectively the bulb gets hotter and hotter as the voltage increases until it is eventually white hot. As the temperature of the metal filament gets hotter its resistance changes.

The user can control the power supply and the variable resistor. The user is free to move anywhere within the laboratory in order to interact with the apparatus.

You can try a practical from our website.

The package is perfect for demonstrating this experiment in front of the class but can also be used by students in a variety of ways:

• Directly to prepare for a laboratory experiment by familiarising them with the equipment to be used and the methodology of the experiment.

• As revision for an experiment that has previously been performed in the laboratory.

• For home-learning where there is no access to a laboratory.

• To make up for an experiment missed due to sickness.

• As a personal experience of an experiment normally only performed by the teacher in front of the class.

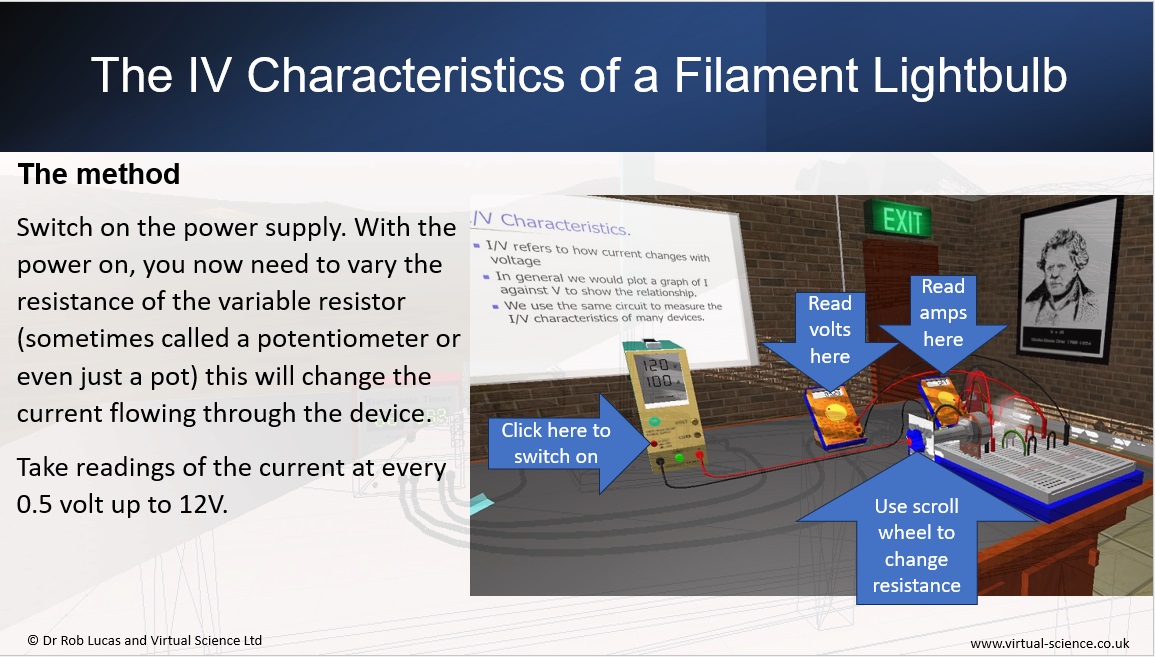

Downloads include: a PowerPoint giving full instructions including a video, background on the Physics and the practical application in a zip file. There is a link to an online version if you prefer not to install.

The Virtual Physics Laboratory of which this simulation is a part, has the Association for Science Education’s Green Tick of Approval. More information can be found on our website.
