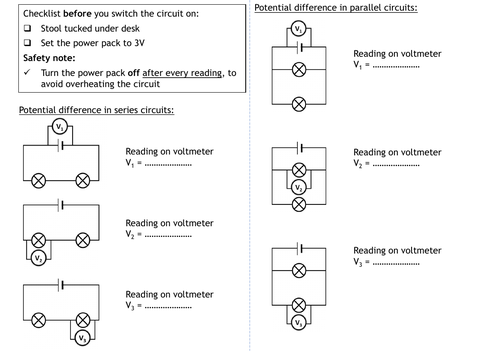

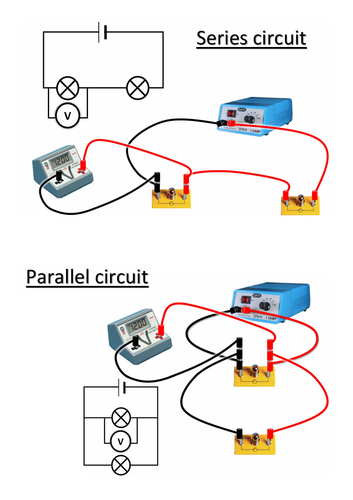

Ideal to help students setting up a practical circuit for the first time. Both series and parallel circuit diagrams with corresponding ‘real-life’ set up, specifically designed to show how to connect voltmeters across components.
You could use with the accompanying worksheet for students to measure pd in series and parallel circuits. The help sheet can be used as a model on how to initially set up a circuit with a voltmeter.
