Here is a PowerPoint presentation that I used to teach both of my year 9 classes how to draw in oblique projection. The PowerPoint contains a printable slide that I printed out onto A4 and each pupil completed the task in 10-minutes.

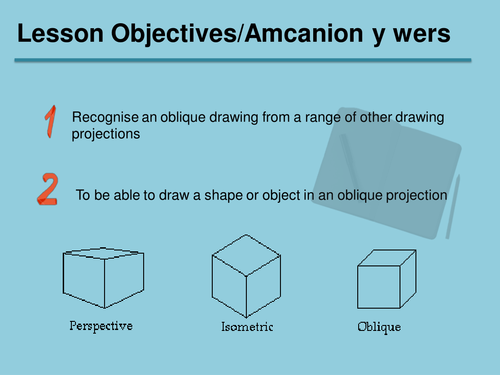

The PowerPoint contains lesson objectives at the start and also a plenary slide to close the lesson.
The printable handout (slide 5) was designed for AEN pupils. To differentiate for higher abilities you can always remove some of the red guidelines on the handout.
An extension activity for slide 7 was that pupils could draw any 2Dimensional shape, then draw it using oblique projection. To differentiate this, you could easily mock up an oblique drawing tool on 2D-design and laser-cut it off onto scraps of 3mm acrylic.
The PowerPoint contains lesson objectives at the start and also a plenary slide to close the lesson.
The printable handout (slide 5) was designed for AEN pupils. To differentiate for higher abilities you can always remove some of the red guidelines on the handout.
An extension activity for slide 7 was that pupils could draw any 2Dimensional shape, then draw it using oblique projection. To differentiate this, you could easily mock up an oblique drawing tool on 2D-design and laser-cut it off onto scraps of 3mm acrylic.
