Using Vernier Calipers and Micrometers

A Keynote¹ and PowerPoint presentation to aid teaching students how to use Vernier Calipers and Micrometers with accompanying printable worksheet. Learning how to use vernier calipers and micrometers is an important part of physics A-Level, and engineering courses.

The presentation includes a labelled diagram of a vernier caliper, followed by high quality diagrams of vernier calipers showing different measurements. The diagrams match those on the worksheet so that students can work through each measurement individually on the worksheet in the first instance.

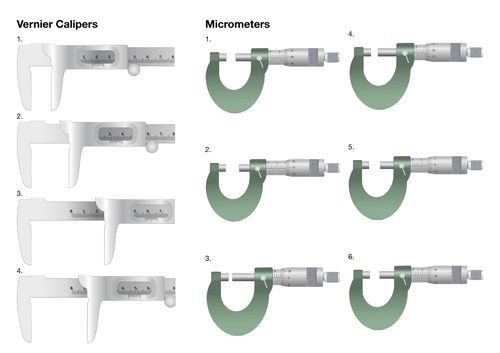

The process is repeated with a labelled diagram of a micrometer and diagrams of a micrometer showing different measurements. The worksheet has all diagrams of vernier calipers and micrometers on a single side of A4 paper.

¹ Keynote is presentation software that works on macOS, iOS and iPadOS devices. The worksheet is a PDF. A PowerPoint version is included for users requiring it.

There is a free version of this activity available as a presentation only (no worksheet) and fewer measurements (two of each). The measurements shown in the free version are different to this activity so if you want to increase the number of measurements you work through with your students you can copy them across.
