OCR A level Physics: Magnetic Fields

OCR A level Physics: Chapter 23 Magnetic Fields is apart of the Module 6: Particle and Medical Physics

All presentations come with worked examples, solutions and homeworks.

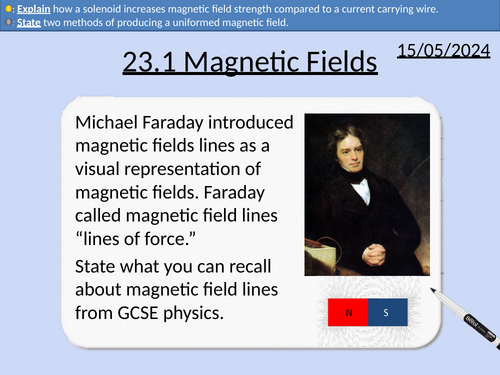

23.1 Magnetic fields

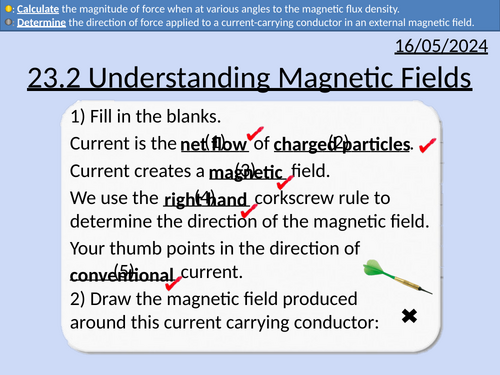

23.2 Understanding magnetic fields

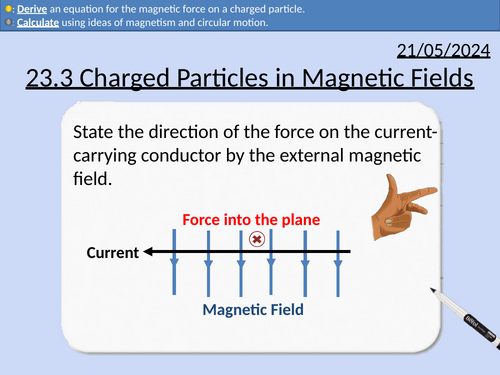

23.3 Charged particles in magnetic fields

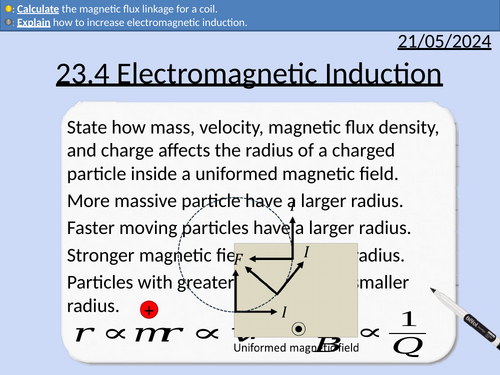

23.4 Electromagnetic induction

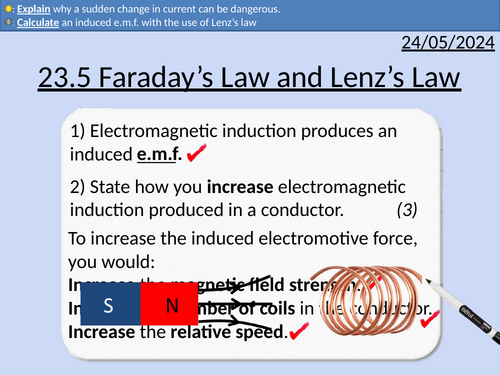

23.5 Faraday’s law and Lenz’s law

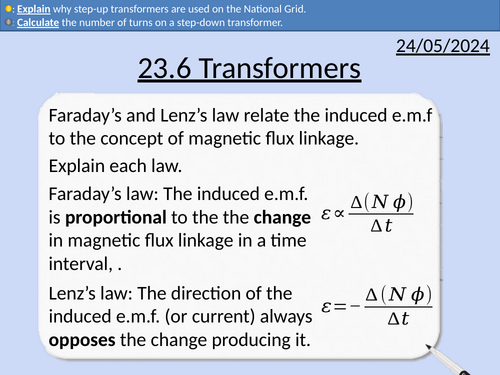

23.6 Transformers

• Attraction and repulsion of magnets
• Rules for magnetic field lines
• The magnetic field of Earth
• Applying the right-hand cork screw rule
• How to create uniformed magnetic fields
• Solenoids
• Fleming’s left hand rule
• Determining the direction of force on a current carrying conductor
• Calculating the magnitude of force on a current carrying conductor
• Angles between the magnetic field and current carrying conductor
• An experiment to determine the magnetic flux density of a field.
• Apply Fleming’s left-hand rule to charged particles
• Deriving an equation for the magnetic force experienced by a single charged particle (F = BQv)
• Charged particles describing (moving) in circular paths in magnetic fields.
• The velocity selector.
• The Hall probe and Hall voltage.
• Electromagnetic induction produces an induced e.m.f
• Conditions to produce electromagnetic induction
• How to increase electromagnetic induction
• Magnetic flux density, magnetic flux, and magnetic flux linkage
• Units of weber (Wb)
• Magnetic flux density and magnetic flux linkage
• Faraday’s Law
• Lenz’s Law
• Alternators and induced e.m.f.
• Graphs of flux linkage and induced e.m.f.
• Structure of transformers
• Step-up and step-down transformers
• The turn-ratio equation
• The ideal transformer equation
• Why transformers are used in the National Grid
